Events

Events are one of the core mechanics of Ratchet. They're called when something happens on the server or when Workshop mods, Tot scripts, or other Lua plugins call them.

You can create your own events, however there are also some built into Ratchet that allow you to integrate your plugins with most common mods such as Roleplay Redux.

Usage

on function

Subscribes to an event. Callback function will be called every time event is triggered. Arguments will be passed into the function.

Syntax:

on( string event, function callback )

off function

Unsubscribes from an event. Callback function has to be a variable reference that was used when subscribing, do not use anonymous functions.

Syntax:

off( string event, function callback )

once function

Subscribes to an event but unsubscribes automatically once the event is triggered. This is useful to catch an event only once.

Syntax:

once( string event, function callback )

emit function

Triggers an event. Any number of arguments can be provided - these will be passed into the callback function. It might be good idea to use table for arguments if you want to be consistent with calls from Tot scripts and DevKit - see Targets Event for more details.

Syntax:

emit( string event [, arguments... ] )

sendToClient function

Sends data to client listener (see DevKit implementation).

Arguments are serialized in a way that's compatible with Tot API unmarshal functions.

Syntax:

void sendToClient( Character player, string name [, arguments... ] )

sendToPlayer function

Sends data to player listener (see DevKit implementation).

Arguments are serialized in a way that's compatible with Tot API unmarshal functions.

Syntax:

void sendToPlayer( Character player, string name [, arguments... ] )

sendToGlobal function

Sends data to global listener (see DevKit implementation).

Arguments are serialized in a way that's compatible with Tot API unmarshal functions.

Syntax:

void sendToGlobal( string name [, arguments... ] )

Internal events

server_start event

This event is triggered right after the server boots up and Ratchet loads all plugins.

There is no guarantee that all the mod controllers are spawned in yet unless Ratchet is on the bottom of the modlist order. It is however guaranteed, that this happens after all plugins are loaded, which happens only after Ratchet's Workshop mod is loaded.

plugin_load event

This event is triggered right after any plugin loads in.

Callback:

function( string pluginName )

command_call event

This event is triggered whenever a player uses the /ratchet call command.
All subsequent arguments are passed as a table.

This can be useful for quick testing.
For actual user commands you might want to use Tot ! Admin Scripts.

Callback:

function( Character player, table<string> arguments )

player_join event

This event is triggered whenever a player connects to the server.

Character object should be fully initialized at the time of execution, but some functionality might still not work right away, especially if Ratchet is not on the bottom of the mod order.

Callback:

function( Character player )

player_quit event

This event is triggered whenever a player disconnects from the server.

Because character object no longer exists at this point in time, only the database ID is sent to the callback function. Do not try to get the Character object from ID, it won't work, as the player is already offline.

Callback:

function( int id )

Roleplay Redux

RPR_useAbility event

Whenever anyone uses any ability in RPR, this event is triggered.

This can be used for example to completely replace some RPR ability logic with Lua code.

Callback:

function( Character player, int ability, table<Character> targets )

Example:

function useAbility(player, ability, targets)
    local targetNames = {}
    for _,target in ipairs(targets)do
        table.insert(targetNames, target:GetName())
    end

    print(player:GetName() .. " used ability #" .. ability .. " on " .. table.concat(targetNames, ", ") .. ".")
end
on("RPR_useAbility", useAbility)

RPR_updateRunes event

Whenever anyone (un)equips any rune in RPR, this event is triggered.

Callback:

function( Character character, table<int> runes )

RPR_updateStatus event

Whenever anyone changes their custom status in RPR, this event is triggered.

Callback:

function( Character character, string status, Color color )

Knight's Sanity

KS_midnight event

This event is triggered whenever the in-game time reaches midnight. Server has to be using KS time sync functionality for this to work. There are no arguments being passed into a callback.

Example:

function atMidnight()
    TotChat.Broadcast("It's midnight!")
end
on("KS_midnight", atMidnight)

KS_selectedPoint event

Callback:

function( Character character, Vector location, string command )

KS_selectedMultiPoint event

Callback:

function( Character character, Vector first, Vector second, string command )

KS_selectedDirection event

Callback:

function( Character character, Rotator rotation, string command )

KS_selectedCharacters event

Callback:

function( Character character, table<Character> selectedPlayers, table<TotPuppet> selectedPuppets, string command )

Tot ! Admin Scripts

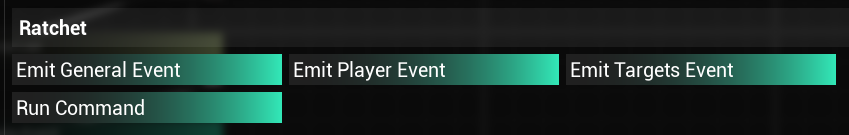

Events can be called from Tot scripts using scripting nodes added by Ratchet mod.

The data are passed into an event callback function in order.

Emit General Event

Inputs: Event, Arguments

function callback(arguments)
    print("Event was called")
    for _,v in ipairs(arguments)do
        print(v)
    end
end
on("example_event", callback)

Emit Player Event

Inputs: Event, Player, Arguments

function callback(player, arguments)
    print(player:GetName() .. " called this event")
    print("Arguments: " .. table.concat(arguments, ", "))
end
on("example_event", callback)

Emit Targets Event

Inputs: Event, Player, Targets, Arguments

function callback(player, targets, arguments)
    print(player:GetName() .. " called this event")
    local targetNames = {}
    for _,target in ipairs(targets)do
        table.insert(targetNames, target:GetName())
    end
    print("Targets: " .. table.concat(targetNames, ", "))
    print("Arguments: " .. table.concat(arguments, ", "))
end
on("example_event", callback)

Tot ! Admin Interactions

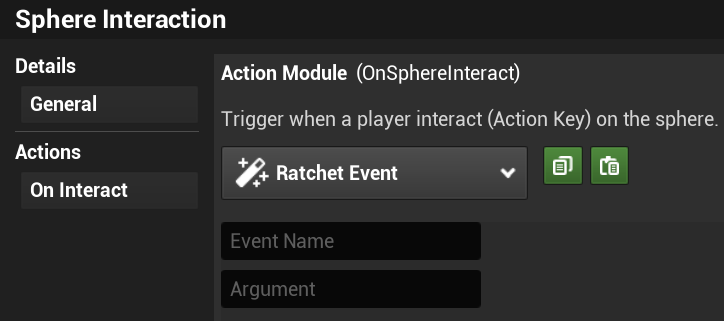

Ratchet also implements an Action Module for all Admin Tools. You can directly call events when interacting with Puppets, points, or when players enter or exit a zone. Using this direct method is more performance friendly than calling events from Tot scripts.

Interaction Event

function callback(player, adminTool, argument)
    print(player:GetName() .. " interacted with " .. getType(adminTool))
end

TIP

If the Admin Tool that the player interacts with is a Puppet, Ratchet will pass it into the callback function as a TotPuppet object. Similarly, if the Admin Tool is either a Sphere Zone or a Box Zone, Ratchet will use the TotZone object. In all other cases, only Actor functions can be used.

Trigger from DevKit

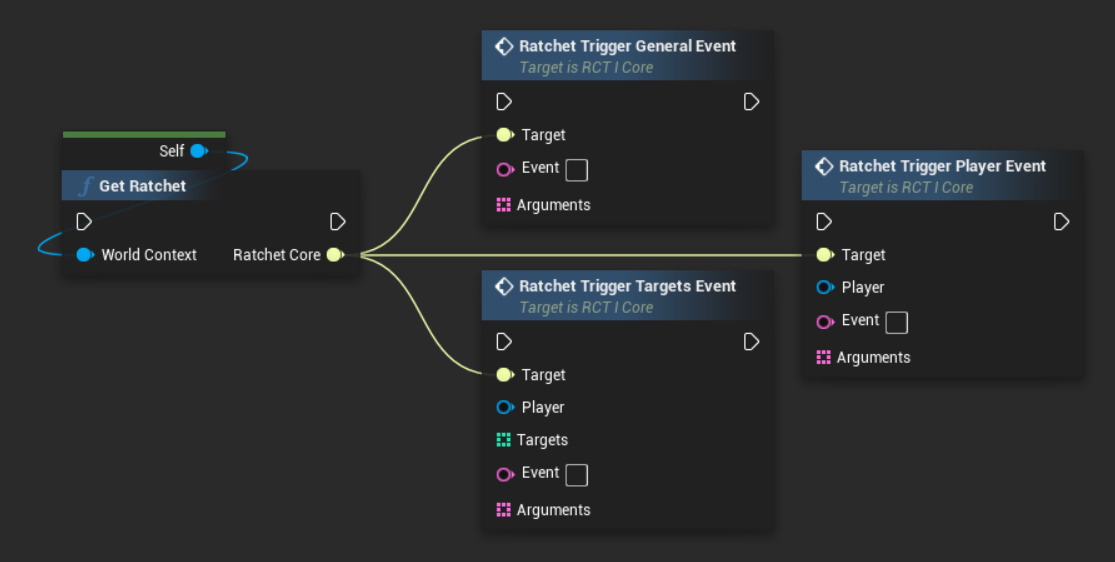

Events can also be called from your own Workshop mods using Ratchet interface API.

Server-side

Callback functions are the same as on the examples in previous section of this page.

INFO

If you are using the Ratchet Trigger Targets Event you have to use IDs for the Targets array.

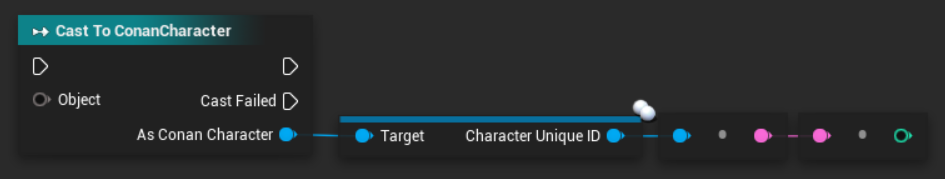

You can retrieve it like this:

Client-side

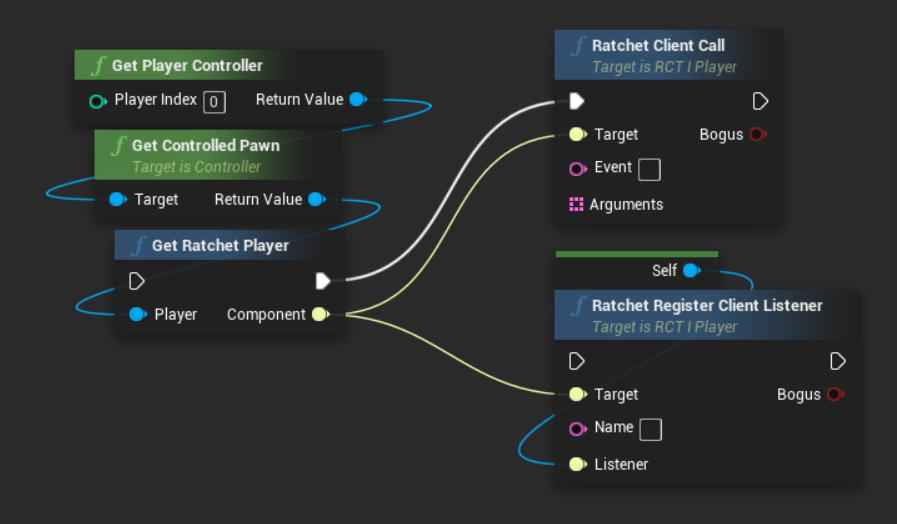

Are you working with custom UI widgets and don't want to mess with RPCs? You can call events from client-side as well using the Ratchet Client Call function from RCT_I_Player interface (which is implemented on an actor component of every player).

You can also implement RCT_I_ClientListener on your blueprint and register this client listener to easily receive a response from Ratchet plugins straight into your UI.

To send data to this listener, use the sendToClient function.

INFO

Keep in mind that there can only be one instance of a client listener with the same name at a time. Registering a new one with the same name will overwrite the previous. This is intended behavior.
